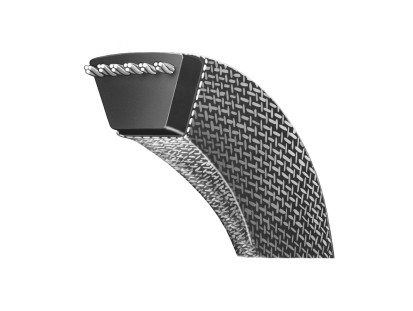

E390 V Belt Type E

Reference: E390 V Belt
Top Width: 1-1/2 in
Height: 29/32 in
Length: 390 in Inside, 396 in Outside
Equivalent to: E390, E 390, E-390, A-E390, EP390, Dayco EP390, BTQ-E390, E390 D&D Power Erive

$159.97

In stock

Description: E390 Classical V-Belt
• Reference: E390
• Length: 390 in Inside Length, 396 in Outside Length
• Top Width: 1-1/2 in
• Height: 29/32 in
• Weight: 19.42 lb
• Material: Rubber cushion, polyester cable cord as reinforcement and rubber impregnated woven cotton-polyester fabric
• Temperature Resistance: -35C to +70C
• Recommended use: Agricultural and Industrial machinery
• Recommended pulley diameter: More than 500mm (19-5/8″)
• Other specifications: Limited Oil resistant, Antistatic, Tolerance Stable
V-belts E390 are commonly used in industrial applications because of their relative low cost, ease of installation. The E390 has a V-shape that makes it easier to keep the belt in sheave grooves on fast moving applications. The biggest operational advantage of the E390 V-belt is the wedging action into the sheave groove. This geometry multiplies the low tensioning force to increase friction on the pulley sidewalls improving the power transmission.

Top Width	1-1/2 in
Belt Type	V Belt
Inside Length	390 in
Outside Length	396 in
Material	Rubber
Height	29/32 in

E390 V Belt Type E
