D77 V Belt Type D

Reference: D77 V Belt

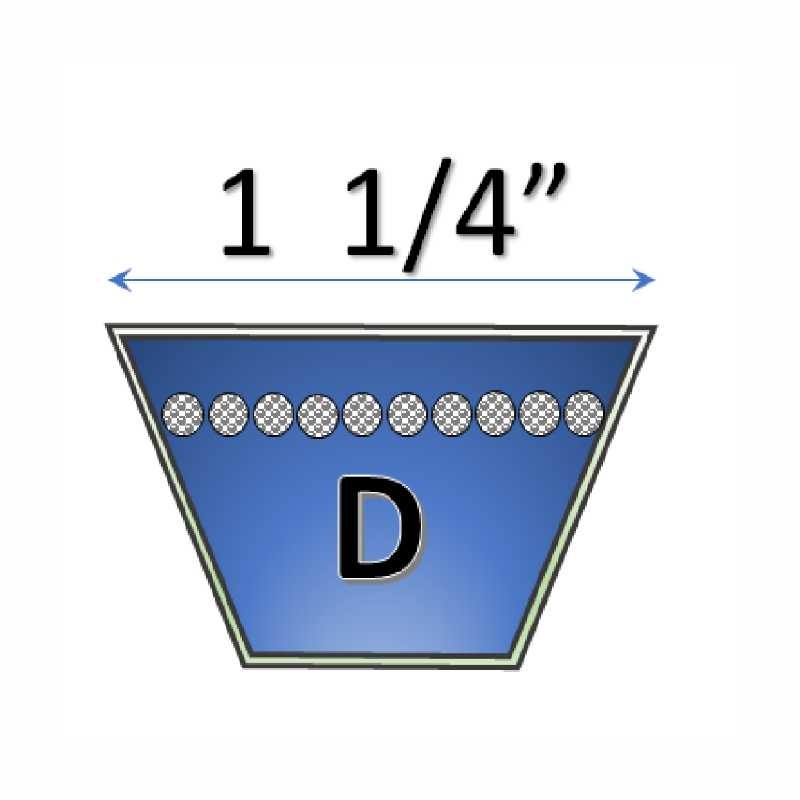

Top Width: 1-1/4 in
Height: 3/4 in
Length: 77 in Inside, 82 in Outside
Equivalent to: D77, D 77, D-77, A-D77, DP77, Dayco DP77, BTQ-D77, D77 D&D Power Drive

$22.82

In stock

Description: D77 Classical V-Belt
• Reference: D77
• Length: 77 in Inside Length, 82 in Outside Length
• Top Width: 1-1/4 in
• Height: 3/4 in
• Weight: 2.54 lb
• Material: Rubber cushion, polyester cable cord as reinforcement and rubber impregnated woven cotton-polyester fabric
• Temperature Resistance: -35C to +70C
• Recommended use: Agricultural and Industrial machinery
• Recommended pulley diameter: More than 355mm (13-15/16″)
• Other specifications: Limited Oil resistant, Antistatic, Tolerance Stable
V-belts D77 are commonly used in industrial applications because of their relative low cost, ease of installation. The D77 has a V-shape that makes it easier to keep the belt in sheave grooves on fast moving applications. The biggest operational advantage of the D77 V-belt is the wedging action into the sheave groove. This geometry multiplies the low tensioning force to increase friction on the pulley sidewalls improving the power transmission.

Top Width	1 1/4 in
Belt Type	V Belt
Inside Length	77 in
Outside Length	82 in
Material	Rubber
Height	3/4 in

D77 V Belt Type D
