D171 V Belt Type D

Reference: D171 V Belt

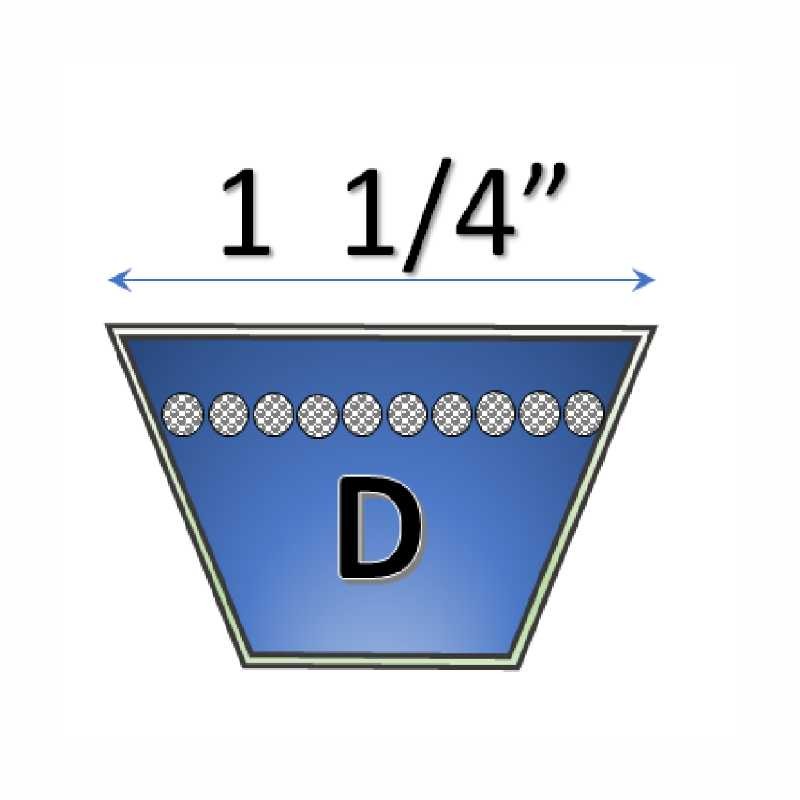

Top Width: 1-1/4 in
Height: 3/4 in
Length: 171 in Inside, 176 in Outside
Equivalent to: D171, D 171, D-171, A-D171, DP171, Dayco DP171, BTQ-D171, D171 D&D Power Drive

$50.65

In stock

Description: D171 Classical V-Belt
• Reference: D171
• Length: 171 in Inside Length, 176 in Outside Length
• Top Width: 1-1/4 in
• Height: 3/4 in
• Weight: 5.64 lb
• Material: Rubber cushion, polyester cable cord as reinforcement and rubber impregnated woven cotton-polyester fabric
• Temperature Resistance: -35C to +70C
• Recommended use: Agricultural and Industrial machinery
• Recommended pulley diameter: More than 355mm (13-15/16″)
• Other specifications: Limited Oil resistant, Antistatic, Tolerance Stable
V-belts D171 are commonly used in industrial applications because of their relative low cost, ease of installation. The D171 has a V-shape that makes it easier to keep the belt in sheave grooves on fast moving applications. The biggest operational advantage of the D171 V-belt is the wedging action into the sheave groove. This geometry multiplies the low tensioning force to increase friction on the pulley sidewalls improving the power transmission.

Top Width	1 1/4 in
Belt Type	V Belt
Inside Length	171 in
Outside Length	176 in
Material	Rubber
Height	3/4 in

D171 V Belt Type D
