D288 V Belt Type D

Reference: D288 V Belt

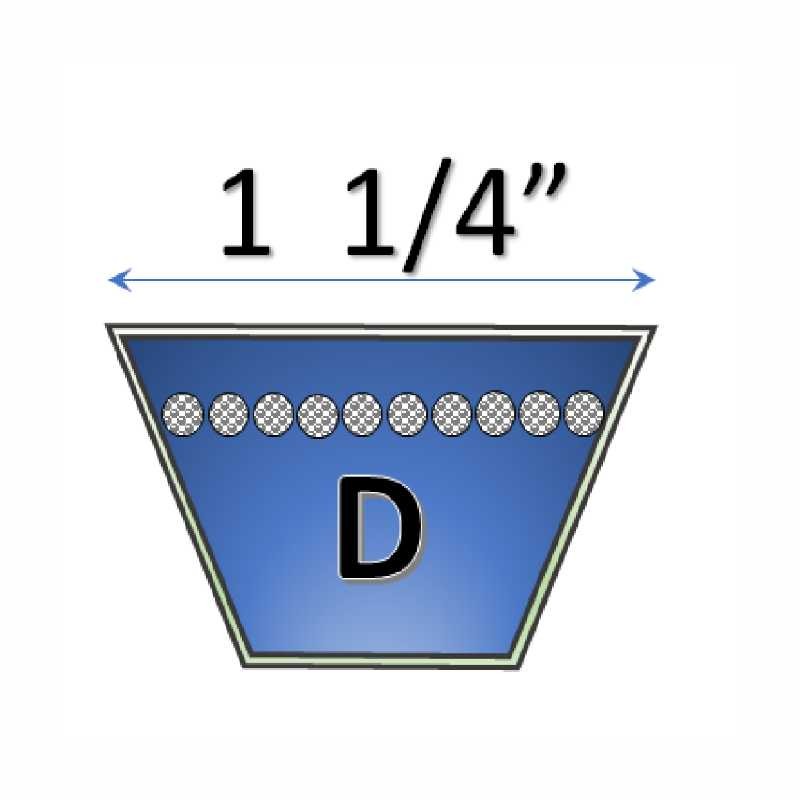

Top Width: 1-1/4 in
Height: 3/4 in
Length: 288 in Inside, 293 in Outside
Equivalent to: D288, D 288, D-288, A-D288, DP288, Dayco DP288, BTQ-D288, D288 D&D Power Drive

$85.26

In stock

Description: D288 Classical V-Belt
• Reference: D288
• Length: 288 in Inside Length, 293 in Outside Length
• Top Width: 1-1/4 in
• Height: 3/4 in
• Weight: 9.50 lb
• Material: Rubber cushion, polyester cable cord as reinforcement and rubber impregnated woven cotton-polyester fabric
• Temperature Resistance: -35C to +70C
• Recommended use: Agricultural and Industrial machinery
• Recommended pulley diameter: More than 355mm (13-15/16″)
• Other specifications: Limited Oil resistant, Antistatic, Tolerance Stable
V-belts D288 are commonly used in industrial applications because of their relative low cost, ease of installation. The D288 has a V-shape that makes it easier to keep the belt in sheave grooves on fast moving applications. The biggest operational advantage of the D288 V-belt is the wedging action into the sheave groove. This geometry multiplies the low tensioning force to increase friction on the pulley sidewalls improving the power transmission.

Top Width	1 1/4 in
Belt Type	V Belt
Inside Length	288 in
Outside Length	293 in
Material	Rubber
Height	3/4 in

D288 V Belt Type D
