A126 V Belt Type A

Reference: A126 V Belt
Top Width: 1/2 in
Height: 5/16 in
Length: 126 in Inside, 128 in Outside
Equivalent to: 4L1280, 4L-1280, A126, 4L 1280, A 126, A-126, Dayco AP126, BTQ-A126, A126 D&D Power Drive

$7.99

In stock

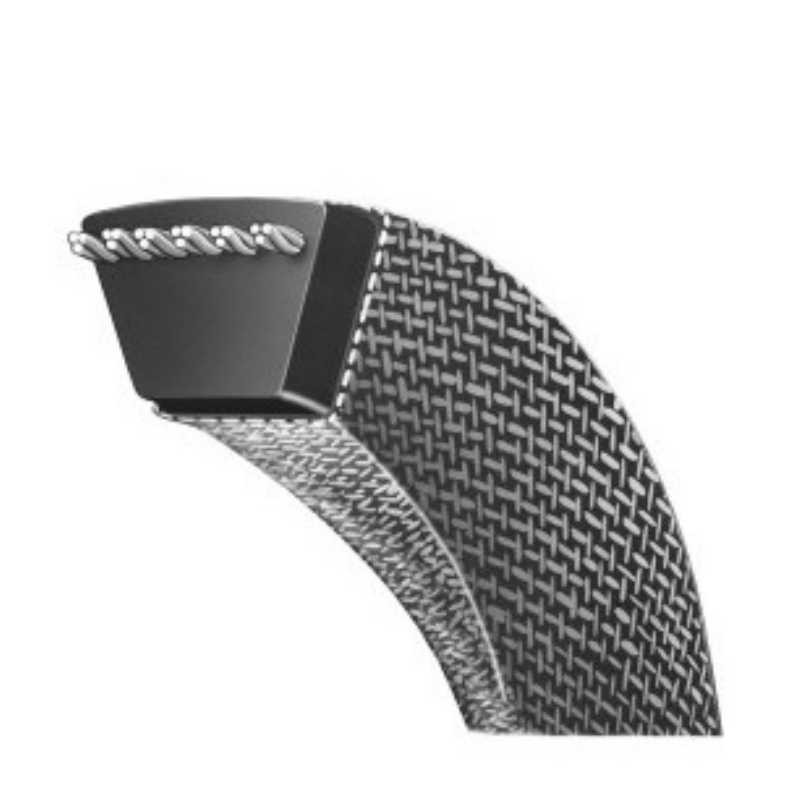

Description: A126 Classical V-Belt
• Reference: A126
• Length: 126″ Inside Length, 128″ Outside Length
• Top Width: 1/2″
• Height: 5/16″
• Weight: 0.78lb
• Material: Rubber cushion, polyester cable cord as reinforcement and rubber impregnated woven cotton-polyester fabric
• Temperature Resistance: -35C to +70C
• Recommended use: Agricultural and Industrial machinery
• Recommended pulley diameter: More than 71mm (2-3/4)
• Other specifications: Limited Oil resistant, Antistatic, Tolerance Stable.
V-belts A126 are commonly used in industrial applications because of their relative low cost, ease of installation. The A126 has a V-shape that makes it easier to keep the belt in sheave grooves on fast moving applications. The biggest operational advantage of the A126 V-belt is the wedging action into the sheave groove. This geometry multiplies the low tensioning force to increase friction on the pulley sidewalls improving the power transmission.

Top Width	1/2 in
Belt Type	V Belt
Inside Length	126 in
Outside Length	128 in
Material	Rubber
Height	5/16 in

A126 V Belt Type A
