A128 V Belt Type A

Reference: A128 V Belt
Top Width: 1/2 in
Height: 5/16 in
Length: 128 in Inside, 130 in Outside
Equivalent to: 4L1300, 4L-1300, A128, 4L 1300, A 128, A-128, Dayco AP128, BTQ-A128, A128 D&D Power Drive

$8.13

In stock

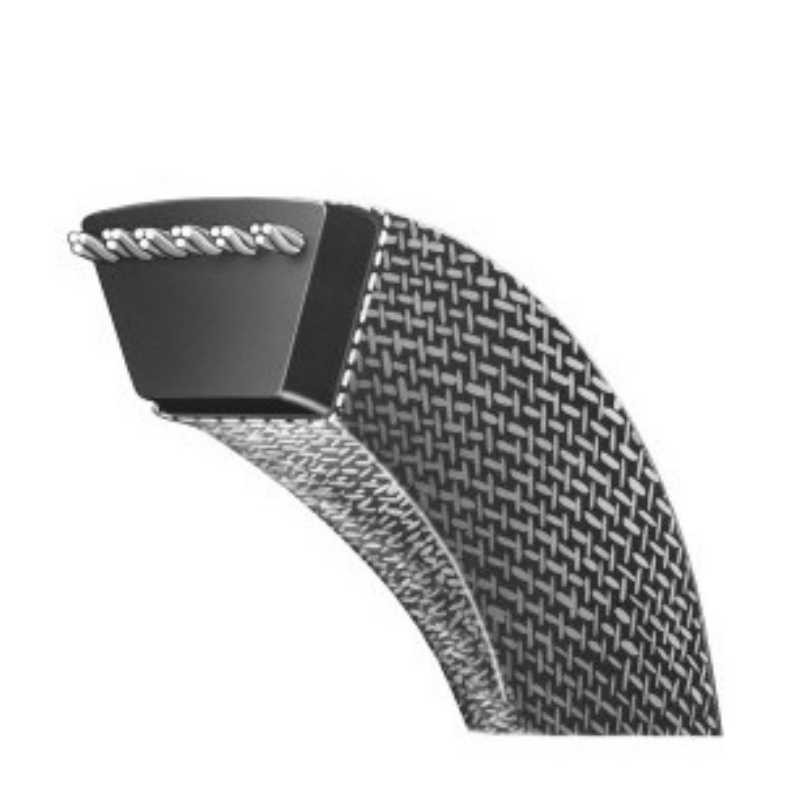

Description: A128 Classical V-Belt
•

Reference: A128
• Length: 128″ Inside Length, 130″ Outside Length
• Top Width: 1/2″
• Height: 5/16″
• Weight: 0.79lb
• Material: Rubber cushion, polyester cable cord as reinforcement and rubber impregnated woven cotton-polyester fabric
• Temperature Resistance: -35C to +70C
• Recommended use: Agricultural and Industrial machinery
• Recommended pulley diameter: More than 71mm (2-3/4)
• Other specifications: Limited Oil resistant, Antistatic, Tolerance Stable.

V-belts A128 are commonly used in industrial applications because of their relative low cost, ease of installation. The A128 has a V-shape that makes it easier to keep the belt in sheave grooves on fast moving applications. The biggest operational advantage of the A128 V-belt is the wedging action into the sheave groove. This geometry multiplies the low tensioning force to increase friction on the pulley sidewalls improving the power transmission.

Top Width	1/2 in
Belt Type	V Belt
Inside Length	128 in
Outside Length	130 in
Material	Rubber
Height	5/16 in

A128 V Belt Type A
