A135 V Belt Type A

Reference: A135 V Belt

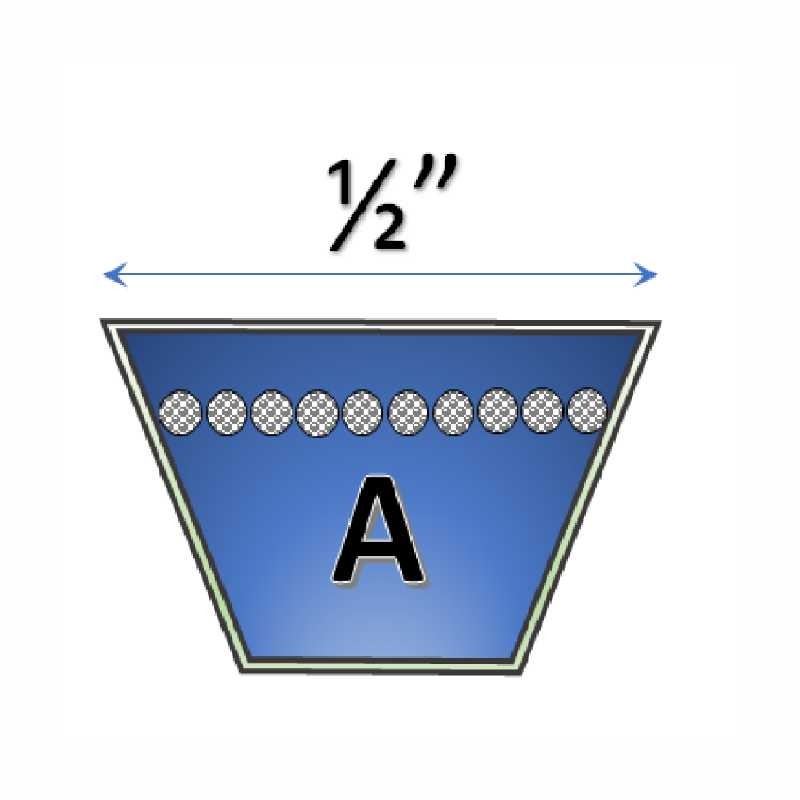

Top Width: 1/2 in
Height: 5/16 in
Length: 135 in Inside, 137 in Outside
Equivalent to: 4L1370, 4L-1370, A135, 4L 1370, A 135, A-135, Dayco AP135, BTQ-A135, A135 D&D Power Drive

$8.58

In stock

Description: A135 Classical V-Belt
• Reference: A135
• Length: 135″ Inside Length, 137″ Outside Length
• Top Width: 1/2″
• Height: 5/16″
• Weight: 0.84 lb
• Material: Rubber cushion, polyester cable cord as reinforcement and rubber impregnated woven cotton-polyester fabric
• Temperature Resistance: -35C to +70C
• Recommended use: Agricultural and Industrial machinery
• Recommended pulley diameter: More than 71mm (2-3/4)
• Other specifications: Limited Oil resistant, Antistatic, Tolerance Stable.
V-belts A135 are commonly used in industrial applications because of their relative low cost, ease of installation. The A135 has a V-shape that makes it easier to keep the belt in sheave grooves on fast moving applications. The biggest operational advantage of the A135 V-belt is the wedging action into the sheave groove. This geometry multiplies the low tensioning force to increase friction on the pulley sidewalls improving the power transmission.

Top Width	1/2 in
Belt Type	V Belt
Inside Length	135 in
Outside Length	137 in
Material	Rubber
Height	5/16 in

A135 V Belt Type A
