A139 V Belt Type A

Reference: A139 V Belt

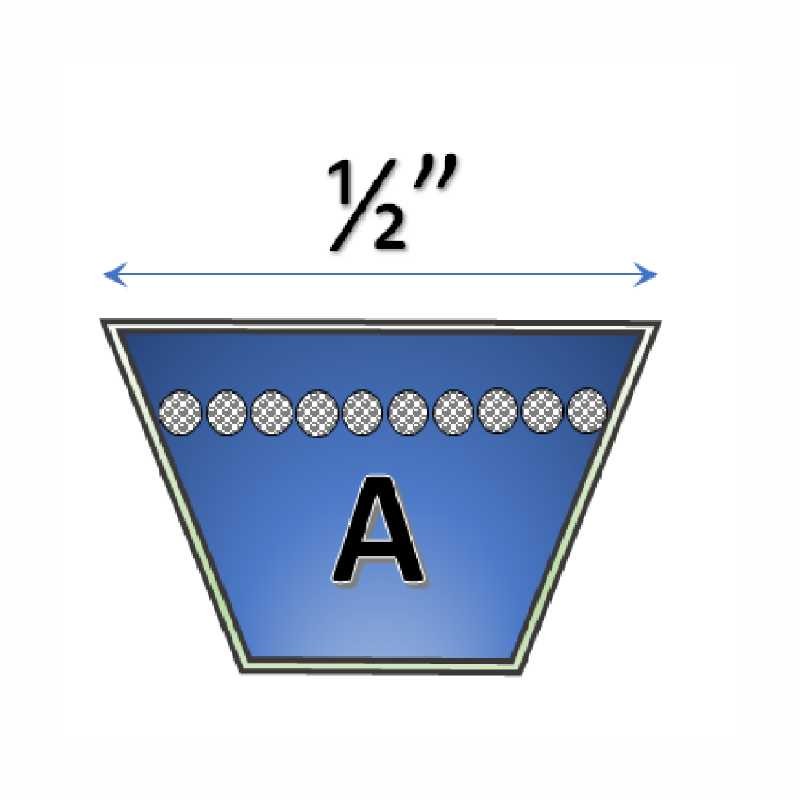

Top Width: 1/2 in
Height: 5/16 in
Length: 139 in Inside, 141 in Outside
Equivalent to: 4L1410, 4L-1410, A139, 4L 1410, A 139, A-139, Dayco AP139, BTQ-A139, A139 D&D Power Drive

$8.83

In stock

Description: A139 Classical V-Belt
• Reference: A139
• Length: 139″ Inside Length, 141″ Outside Length
• Top Width: 1/2″
• Height: 5/16″
• Weight: 0.86 lb

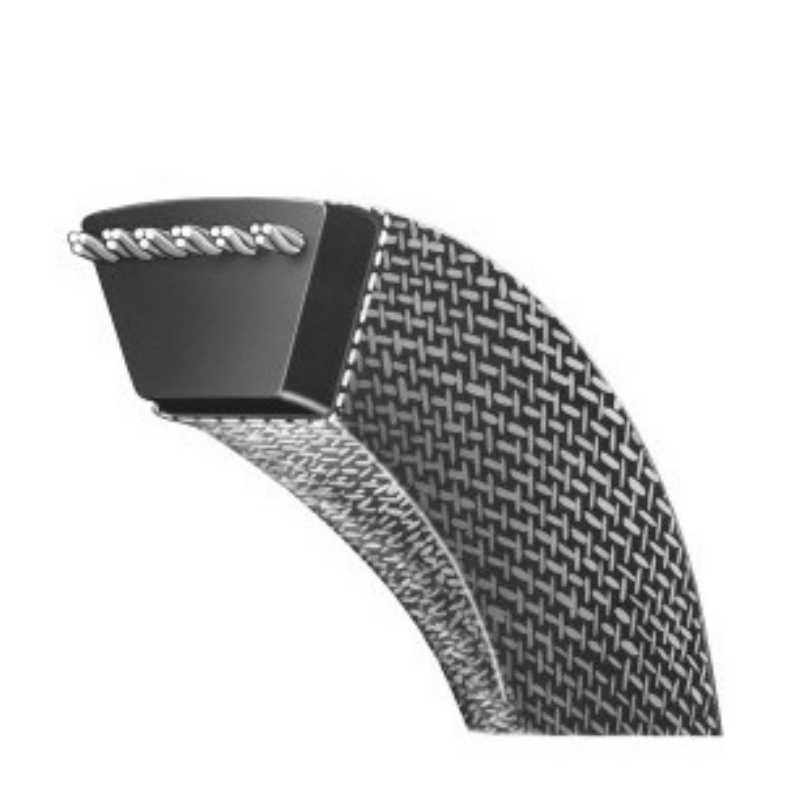

• Material: Rubber cushion, polyester cable cord as reinforcement and rubber impregnated woven cotton-polyester fabric
• Temperature Resistance: -35C to +70C
• Recommended use: Agricultural and Industrial machinery
• Recommended pulley diameter: More than 71mm (2-3/4)
• Other specifications: Limited Oil resistant, Antistatic, Tolerance Stable.
V-belts A139 are commonly used in industrial applications because of their relative low cost, ease of installation. The A139 has a V-shape that makes it easier to keep the belt in sheave grooves on fast moving applications. The biggest operational advantage of the A139 V-belt is the wedging action into the sheave groove. This geometry multiplies the low tensioning force to increase friction on the pulley sidewalls improving the power transmission.

Top Width	1/2 in
Belt Type	V Belt
Inside Length	139 in
Outside Length	141 in
Material	Rubber
Height	5/16 in

A139 V Belt Type A
