A144 V Belt Type A

Reference: A144 V Belt

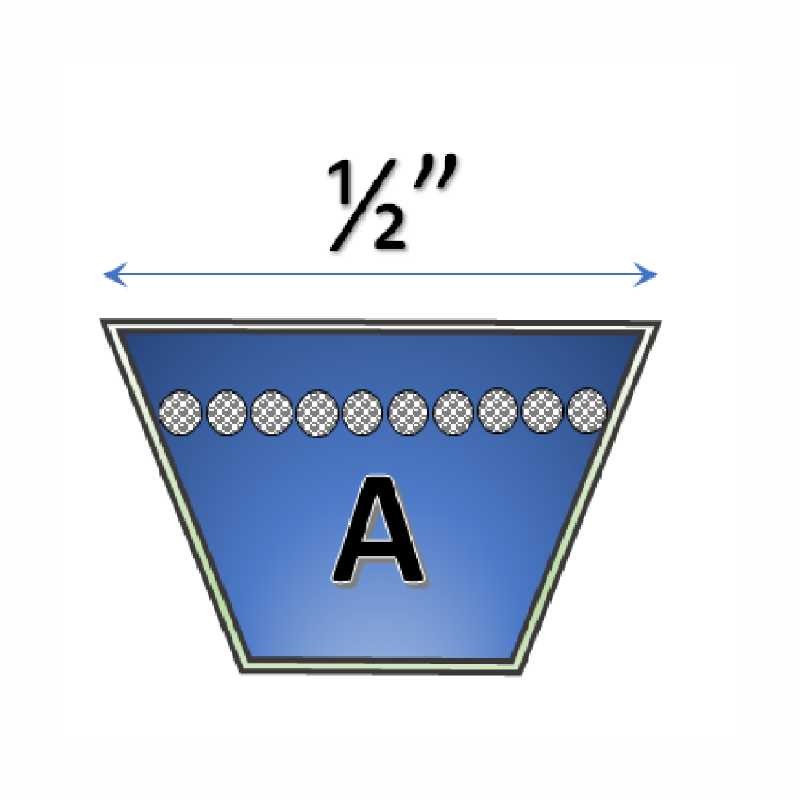

Top Width: 1/2 in
Height: 5/16 in
Length: 144 in Inside, 146 in Outside
Equivalent to: 4L1460, 4L-1460, A144, 4L 1460, A 144, A-144, Dayco AP144, BTQ-A144, A144 D&D Power Drive

$9.14

In stock

Description: A144 Classical V-Belt
• Reference: A144
• Length: 144″ Inside Length, 146″ Outside Length
• Top Width: 1/2″
• Height: 5/16″
• Weight: 0.90 lb
• Material: Rubber cushion, polyester cable cord as reinforcement and rubber impregnated woven cotton-polyester fabric
• Temperature Resistance: -35C to +70C
• Recommended use: Agricultural and Industrial machinery
• Recommended pulley diameter: More than 71mm (2-3/4)
• Other specifications: Limited Oil resistant, Antistatic, Tolerance Stable.
V-belts A144 are commonly used in industrial applications because of their relative low cost, ease of installation. The A144 has a V-shape that makes it easier to keep the belt in sheave grooves on fast moving applications. The biggest operational advantage of the A144 V-belt is the wedging action into the sheave groove. This geometry multiplies the low tensioning force to increase friction on the pulley sidewalls improving the power transmission.

Top Width	1/2 in
Belt Type	V Belt
Inside Length	144 in
Outside Length	146 in
Material	Rubber
Height	5/16 in

A144 V Belt Type A
