A197 V Belt Type A

Reference: A197 V Belt

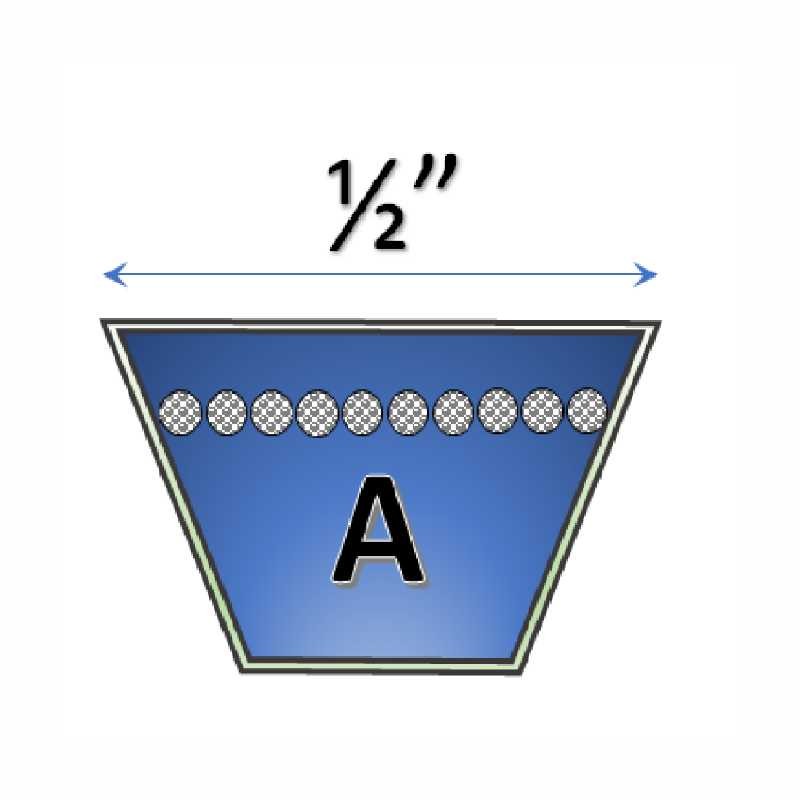

Top Width: 1/2 in
Height: 5/16 in
Length: 197 in Inside, 199 in Outside
Equivalent to: 4L1990, 4L-1990, A197, 4L 1990, A 197, A-197, Dayco AP197, BTQ-A197, A197 D&D Power Drive

$12.51

In stock

Description: A197 Classical V-Belt
• Reference: A197
• Length: 197″ Inside Length, 199″ Outside Length
• Top Width: 1/2″
• Height: 5/16″
• Weight: 1.28 lb
• Material: Rubber cushion, polyester cable cord as reinforcement and rubber impregnated woven cotton-polyester fabric
• Temperature Resistance: -35C to +70C
• Recommended use: Agricultural and Industrial machinery
• Recommended pulley diameter: More than 71mm (2-3/4)
• Other specifications: Limited Oil resistant, Antistatic, Tolerance Stable.
V-belts A197 are commonly used in industrial applications because of their relative low cost, ease of installation. The A197 has a V-shape that makes it easier to keep the belt in sheave grooves on fast moving applications. The biggest operational advantage of the A197 V-belt is the wedging action into the sheave groove. This geometry multiplies the low tensioning force to increase friction on the pulley sidewalls improving the power transmission.

Top Width	1/2 in
Belt Type	V Belt
Inside Length	197 in
Outside Length	199 in
Material	Rubber
Height	5/16 in

A197 V Belt Type A
