A210 V Belt Type A

Reference: A210 V Belt

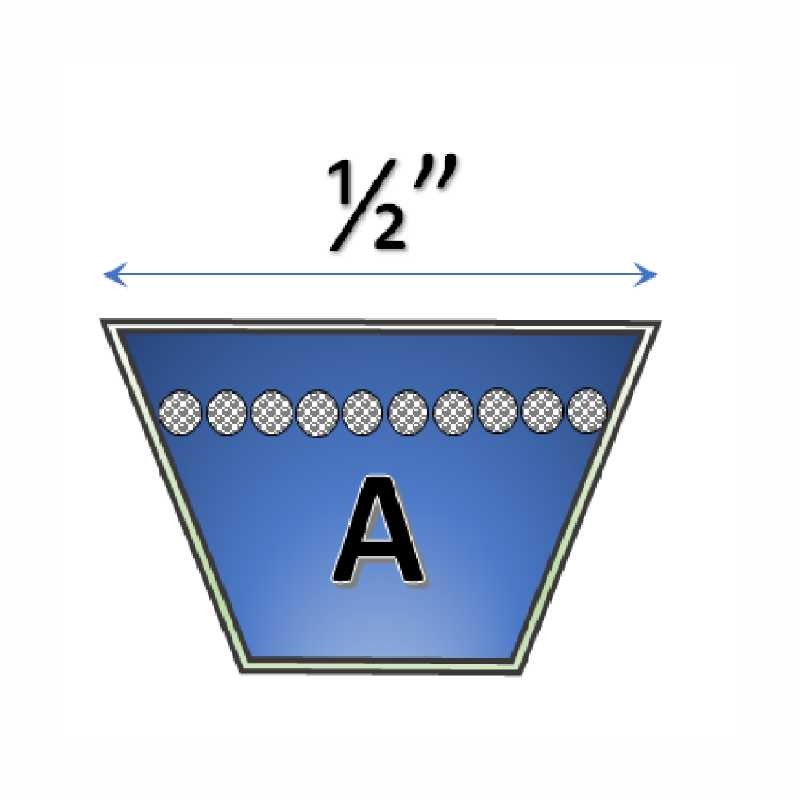

Top Width: 1/2 in
Height: 5/16 in
Length: 210 in Inside, 212 in Outside
Equivalent to: 4L2120, 4L-2120, A210, 4L 2120, A 210, A-210, Dayco AP210, BTQ-A210, A210 D&D Power Drive

$13.33

In stock

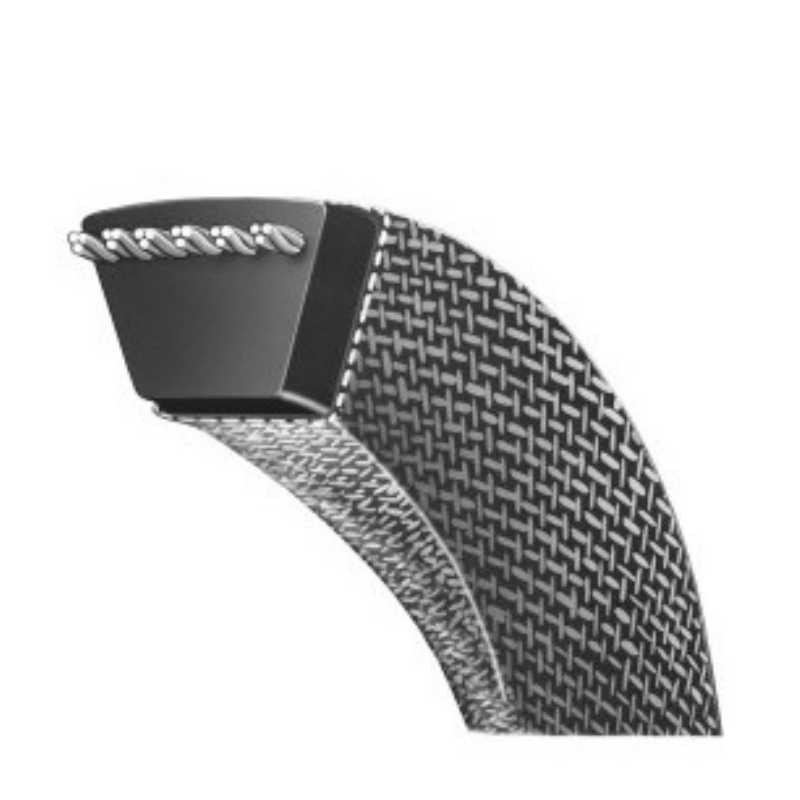

Description: A210 Classical V-Belt
• Reference: A210
• Length: 210″ Inside Length, 212″ Outside Length
• Top Width: 1/2″
• Height: 5/16″
• Weight: 1.40 lb
• Material: Rubber cushion, polyester cable cord as reinforcement and rubber impregnated woven cotton-polyester fabric
• Temperature Resistance: -35C to +70C
• Recommended use: Agricultural and Industrial machinery
• Recommended pulley diameter: More than 71mm (2-3/4)
• Other specifications: Limited Oil resistant, Antistatic, Tolerance Stable.
V-belts A210 are commonly used in industrial applications because of their relative low cost, ease of installation. The A210 has a V-shape that makes it easier to keep the belt in sheave grooves on fast moving applications. The biggest operational advantage of the A210 V-belt is the wedging action into the sheave groove. This geometry multiplies the low tensioning force to increase friction on the pulley sidewalls improving the power transmission.

Top Width	1/2 in
Belt Type	V Belt
Inside Length	210 in
Outside Length	212 in
Material	Rubber
Height	5/16 in

A210 V Belt Type A
