A240 V Belt Type A

Reference: A240 V Belt

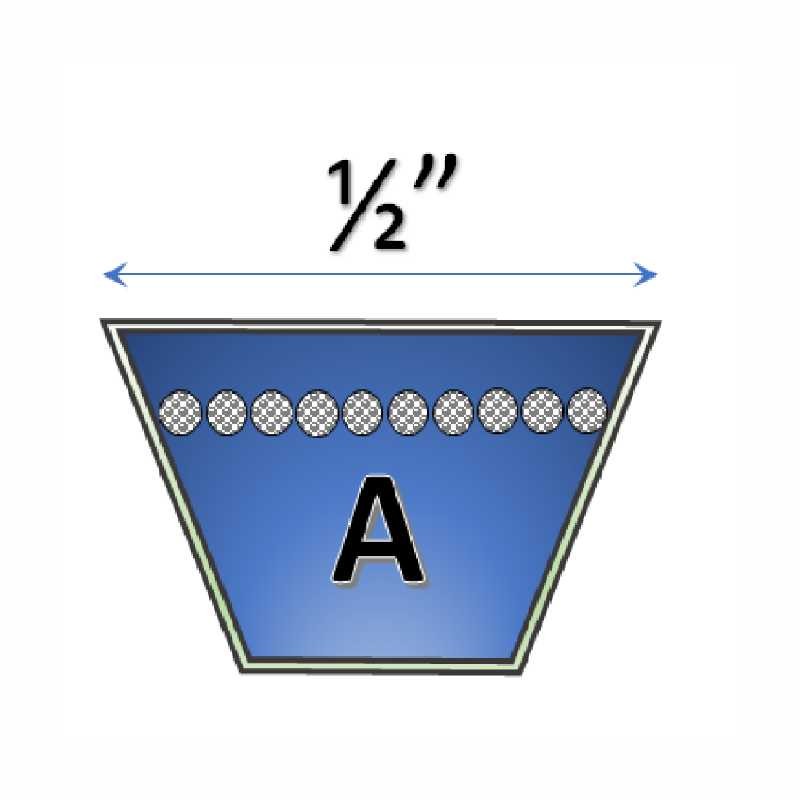

Top Width: 1/2 in
Height: 5/16 in
Length: 240 in Inside, 242 in Outside
Equivalent to: 4L2420, 4L-2420, A240, 4L 2420, A 240, A-240, Dayco AP240, BTQ-A240, A240 D&D Power Drive

$15.22

In stock

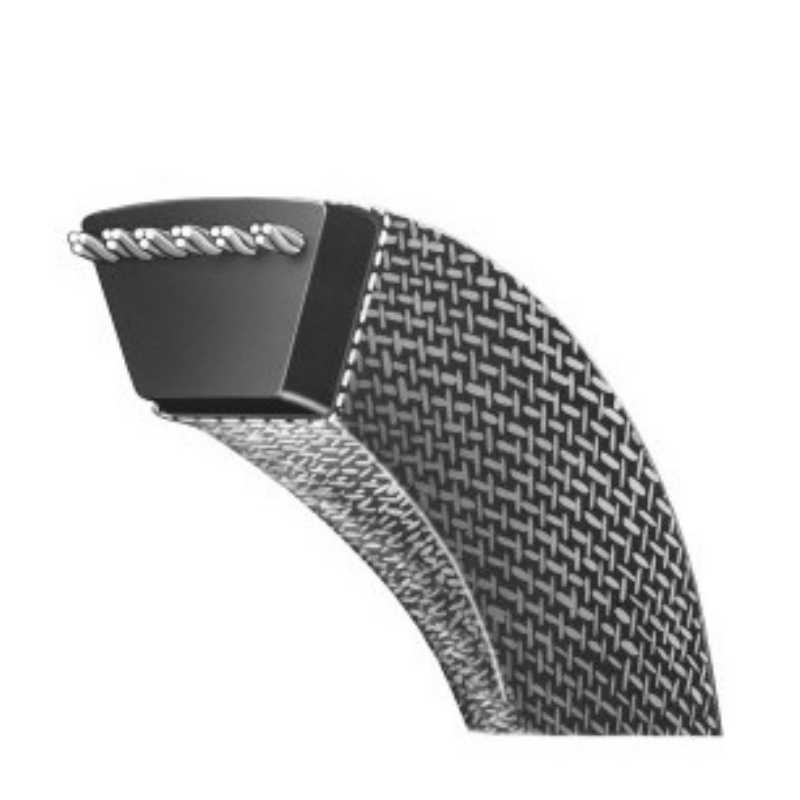

Description: A240 Classical V-Belt
• Reference: A240
• Length: 240″ Inside Length, 242″ Outside Length
• Top Width: 1/2″
• Height: 5/16″
• Weight: lb
• Material: Rubber cushion, polyester cable cord as reinforcement and rubber impregnated woven cotton-polyester fabric
• Temperature Resistance: -35C to +70C
• Recommended use: Agricultural and Industrial machinery
• Recommended pulley diameter: More than 71mm (2-3/4)
• Other specifications: Limited Oil resistant, Antistatic, Tolerance Stable.
V-belts A240 are commonly used in industrial applications because of their relative low cost, ease of installation. The A240 has a V-shape that makes it easier to keep the belt in sheave grooves on fast moving applications. The biggest operational advantage of the A240 V-belt is the wedging action into the sheave groove. This geometry multiplies the low tensioning force to increase friction on the pulley sidewalls improving the power transmission.

Top Width	1/2 in
Belt Type	V Belt
Inside Length	240 in
Outside Length	242 in
Material	Rubber
Height	5/16 in

A240 V Belt Type A
