104XL030 / Timing Belt type XL

Reference: 104XL030
Description: 104XL030 Standard inch Pitch Timing Belt
Length: 10.4 in Pitch Length
Width: 0.3 in
Number of teeth: 52

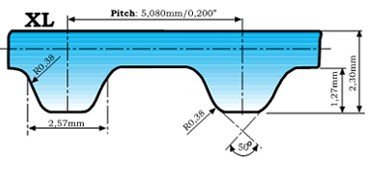

Pitch: 0.20 in
Total Height: 0.09 in
Tooth Height: 0.05 in
Weight: 0.01 lb

$3.55

In stock

Description: 104XL030 Standard inch Pitch Timing Belt
• Reference: 104XL030
• Length: 10.4 in Pitch Length
• Width: 0.3 in
• Number of teeth: 52
• Pitch: 0.20 in
• Total Height: 0.09 in
• Tooth Height: 0.05 in
• Weight: 0.01 lb
• Other specifications: Limited Oil resistant, Antistatic, Tolerance Stable
Recommended use:
The 104XL030 is reinforced with helically wound tensile cords that are specially engineered, twisted, heat and chemically set, polyester material. The 104XL030 body rubber compound is a highly engineered synthetic rubber compound, specially compounded for cool running, flexibility, crack resistance, and excellent bonding to the outer fabric and tensile cords. The 104XL030 belts exceed USA RMA published ratings levels and are designed to perform at the identical or higher level than all other major USA Manufacturer’s and OEM belts of the same type.

Number of Teeth	52
Top Width	0.3 in
Pitch	0.2 in
Belt Type	Timing Belt
Pitch Length	10.4 in
Material	Rubber

104XL030 / Timing Belt type XL
