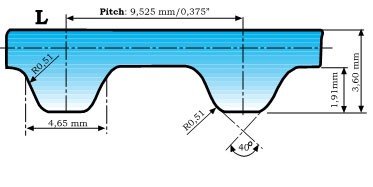

1028L050 / Type L Timing Belts. 102.8 in Pitch Length. 5 in Top Width.

Reference: 1028L050
Description: 1028L050 Standard inch Pitch Timing Belt
Length: 102.8 in Pitch Length
Number of teeth: 274
Pitch: 0.375 in
Total Height: 0.14 in
Tooth Height: 0.075 in
Weight: 0.26 lb

$17.28

In stock

Description: 1028L050 Standard Timing Belt
• Reference: 1028L050
• Leng102.82.8 in Pitch Length
• Width: 0.5 in
• Number of teeth: 274274 Pitch: 0.375 in
• Pitch: 0.375 in
• Total Height: 0.14 in
• Tooth Height: 0.075 in
• Weight: 0.26 lb
• Material: Flexible neoprene backing, fiberglass tensile cord as reinforcement
• The 1028L050 timing belts offer a reliable, economical and trouble-free alternative to chain drives. Compared to chain drives 1028L050 belts are cleaner, lube-free, quieter and lower in cost. The 1028L050 belts feature high temperature chloroprene polymer throughout. The high performance, woven, nylon based, fabric facing material has been engineered and tested for highly wear resistant performance.1028L050The backing is precision ground for smooth uniform running. The 1028L050 timing belts exceed USA RMA Standard IP-24 ratings levels and compare to the premium manufacturers ratings for Timing belts.

Number of Teeth	275
Top Width	1/2 in
Pitch	0.375 in
Belt Type	Timing Belt
Pitch Length	102.8 in
Material	Rubber

1028L050 / Type L Timing Belts. 102.8 in Pitch Length. 5 in Top Width.
