5V930/09 / 5V Banded Belt 5/8 ” width belt

Description: 5V930/09 Wrapped Banded Belt
• Reference: 5V930/09
• Length: 89.5 in Inside Length, 93 in Outside Length
• Number of ribs: 9

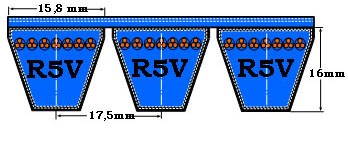

• Top Width: 5/8 in
• Height: 35/64 in
• Pitch Distance: 11/16 in
• Weight: 11.47 lb
• Material: Rubber cushion, polyester cable cord as reinforcement and rubber impregnated woven cotton-polyester fabric
• Temperature Resistance: -35C to +70C
• Recommended use:
– Where horsepower capacity or output is needed
– When single or multiple drives are impractical due to limited space
– Where belt vibration or belt whip causes unsatisfactory results where multiple conventional V-belts are installed.
• Other specifications: Limited Oil resistant, Antistatic, Tolerance Stable
Banded 5V930/09 wrapped V-belts give premium belt performance, just as do their single belt counterparts. The 5V930/09 belts are constructed of the same highly engineered, high performance components as single wrapped belts. The 5V930/09 outer fabric wrap is treated with oil and heat resistant, engineered synthetic rubber compound, specifically compounded for excellent wear resistance, proven through thousands of hours of testing. The 5V930/09 Tie-Band backing joins the individual belts. It is made out of especially heavy duty, directionally woven fabric encapsulated in a tough rubber case to give excellent flexibility around the pulleys. In the transverse direction the 5V930/09 offers an extremely strong tie band across the top of the belts, and very importantly the tie band has superb adhesion to each individual belts.
