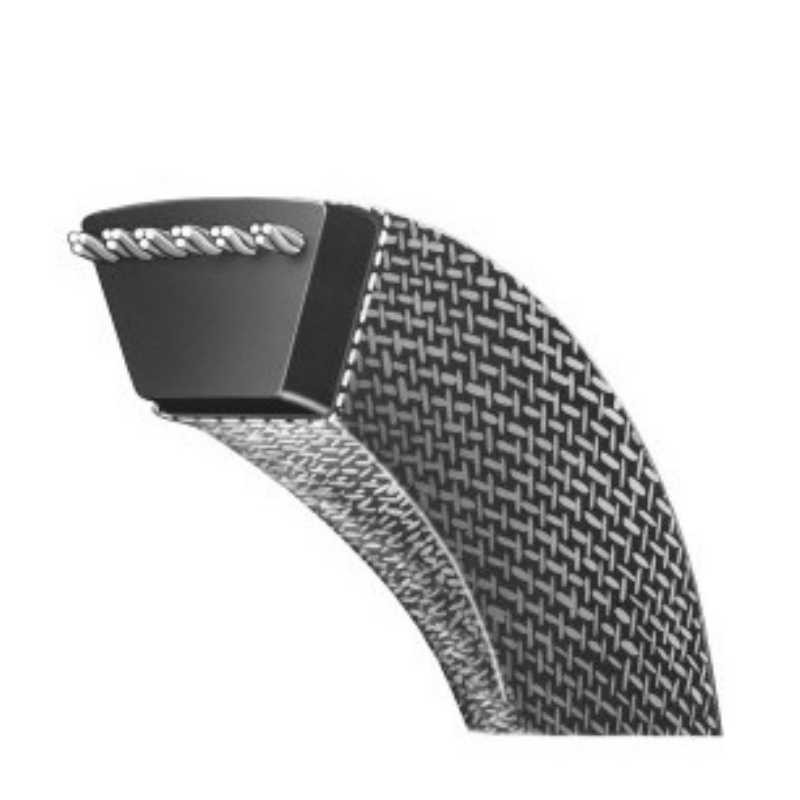

B221 V Belt Type B

Reference: B221 Belt Type B

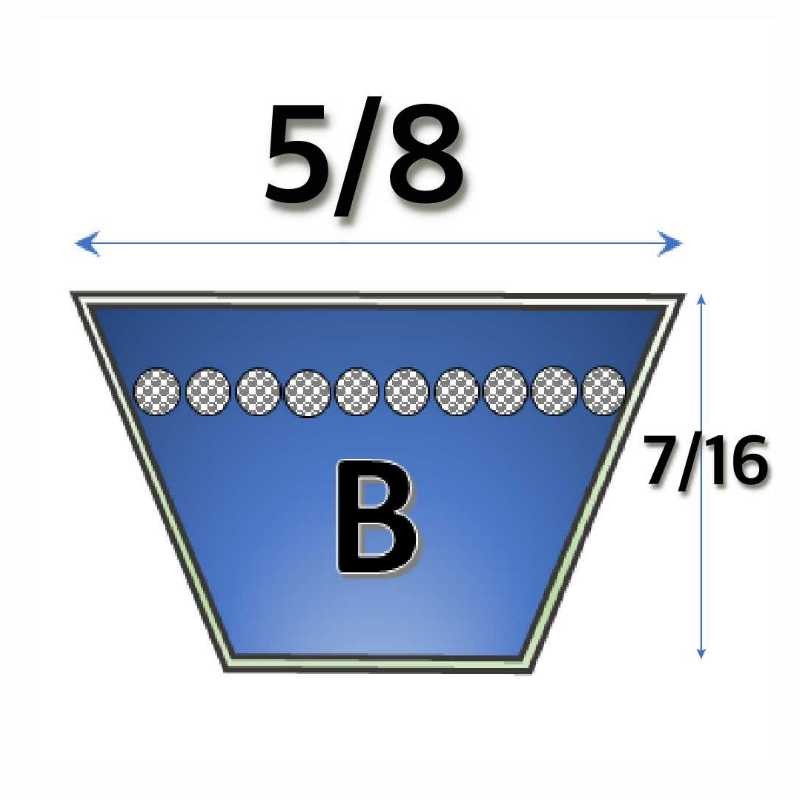

Top Width: 5/8 in
Heigth: 7/16 in
Length: 221 in Inside, 224 in Outside
Equivalent to: 5L2240

$19.14

In stock

Description: B221 Classical V-Belt
• Reference: B221
• Length: 221 in Inside Length, 224 in Outside Length
• Top Width: 5/8 in
• Height: 7/16 in
• Weight: 2.28 lb
• Material: Rubber cushion, polyester cable cord as reinforcement and rubber impregnated woven cotton-polyester fabric
• Temperature Resistance: -35C to +70C
• Recommended use: Agricultural and Industrial machinery
• Recommended pulley diameter: More than 71mm (2-3/4″)
• Other specifications: Limited Oil resistant, Antistatic, Tolerance Stable
V-belts B221 are commonly used in industrial applications because of their relative low cost, ease of installation. The B221 has a V-shape that makes it easier to keep the belt in sheave grooves on fast moving applications. The biggest operational advantage of the B221 V-belt is the wedging action into the sheave groove. This geometry multiplies the low tensioning force to increase friction on the pulley sidewalls improving the power transmission.

Top Width	5/8 in
Belt Type	V Belt
Inside Length	221 in
Outside Length	224 in
Material	Rubber
Height	7/16 in

B221 V Belt Type B
