B346 V Belt Type B

Description: B346 Classical V-Belt
• Reference: B346

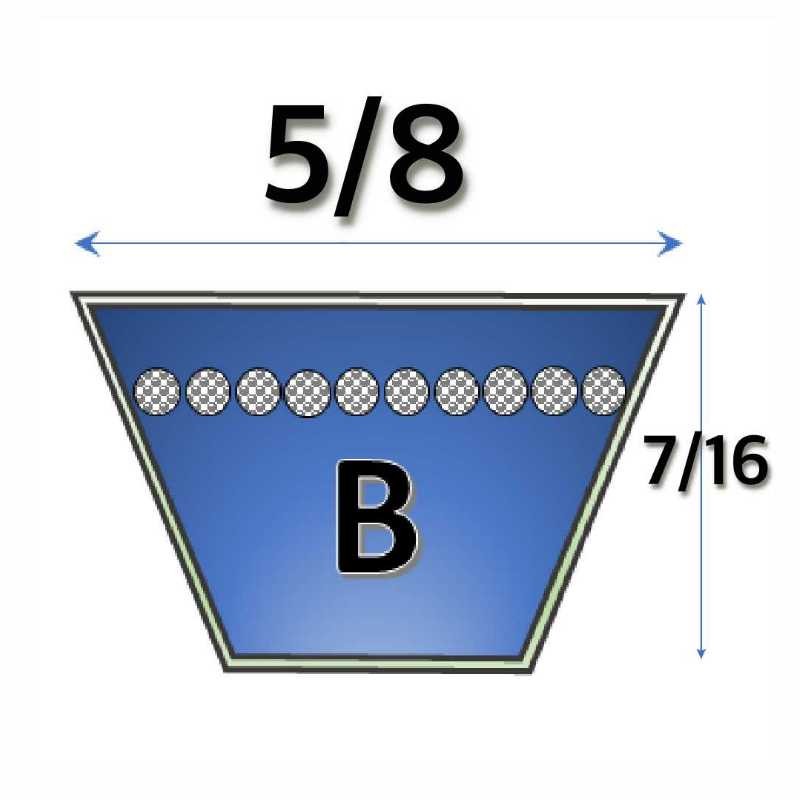

• Length: 346 in Inside Length, 349 in Outside Length
• Top Width: 5/8 in
• Height: 7/16 in
• Weight: 3.56 lb
• Material: Rubber cushion, polyester cable cord as reinforcement and rubber impregnated woven cotton-polyester fabric
• Temperature Resistance: -35C to +70C
• Recommended use: Agricultural and Industrial machinery
• Recommended pulley diameter: More than 71mm (2-3/4″)
• Other specifications: Limited Oil resistant, Antistatic, Tolerance Stable
V-belts B346 are commonly used in industrial applications because of their relative low cost, ease of installation. The B346 has a V-shape that makes it easier to keep the belt in sheave grooves on fast moving applications. The biggest operational advantage of the B346 V-belt is the wedging action into the sheave groove. This geometry multiplies the low tensioning force to increase friction on the pulley sidewalls improving the power transmission.
