C67 V Belt Type C

Reference: C67 V Belt

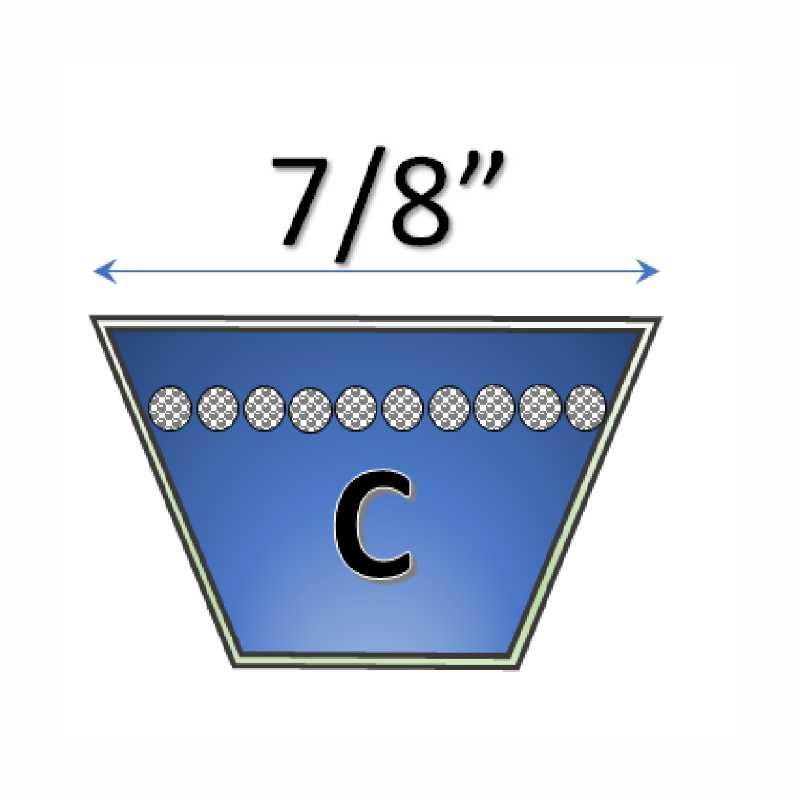

Top Width: 7/8 in
Height: 5/16 in
Length: 67 in Inside, 71 in Outside
Equivalent to: C67, C 67, C-67, A-C67, CP67, Dayco CP67, BTQ-C67, C67 D&D Power Drive

$10.04

In stock

Description: C67 Classical V-Belt
• Reference: C67
• Length: 67 in Inside Length, 71 in Outside Length
• Top Width: 21/32 in
• Height: 5/16 in
• Weight: 1.13 lb
• Material: Rubber cushion, polyester cable cord as reinforcement and rubber impregnated woven cotton-polyester fabric
• Temperature Resistance: -35C to +70C
• Recommended use: Agricultural and Industrial machinery
• Recommended pulley diameter: More than 180 mm (7-1/16″)
• Other specifications: Limited Oil resistant, Antistatic, Tolerance Stable
V-belts C67 are commonly used in industrial applications because of their relative low cost, ease of installation. The C67 has a V-shape that makes it easier to keep the belt in sheave grooves on fast moving applications. The biggest operational advantage of the C67 V-belt is the wedging action into the sheave groove. This geometry multiplies the low tensioning force to increase friction on the pulley sidewalls improving the power transmission.

Top Width	7/8 in
Belt Type	V Belt
Inside Length	67 in
Outside Length	71 in
Material	Rubber
Height	17/32 in

C67 V Belt Type C
