C100 V Belt Type C

Reference: C100 V Belt
Top Width: 7/8 in
Height: 5/16 in
Length: 100 in Inside, 104 in Outside
Equivalent to: C100, C 100, C-100, A-C100, CP100, Dayco CP100, BTQ-C100, C100 D&D Power Drive, Grainger 4FH83

$14.96

In stock

Description: C100 Classical V-Belt
• Reference: C100
• Length: 100 in Inside Length, 104 in Outside Length
• Top Width: 21/32 in
• Height: 5/16 in
• Weight: 1.68 lb

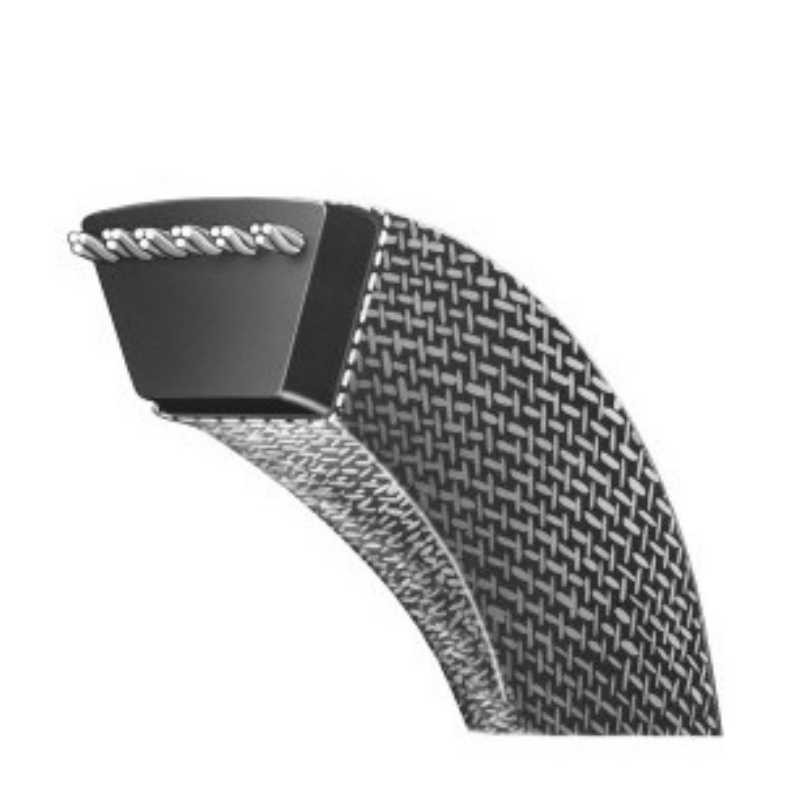

• Material: Rubber cushion, polyester cable cord as reinforcement and rubber impregnated woven cotton-polyester fabric
• Temperature Resistance: -35C to +70C
• Recommended use: Agricultural and Industrial machinery
• Recommended pulley diameter: More than 180 mm (7-1/16″)
• Other specifications: Limited Oil resistant, Antistatic, Tolerance Stable
V-belts C100 are commonly used in industrial applications because of their relative low cost, ease of installation. The C100 has a V-shape that makes it easier to keep the belt in sheave grooves on fast moving applications. The biggest operational advantage of the C100 V-belt is the wedging action into the sheave groove. This geometry multiplies the low tensioning force to increase friction on the pulley sidewalls improving the power transmission.

Top Width	7/8 in
Belt Type	V Belt
Inside Length	100 in
Outside Length	104 in
Material	Rubber
Height	17/32 in

C100 V Belt Type C
