C203 V Belt Type C

Reference: C203 V Belt

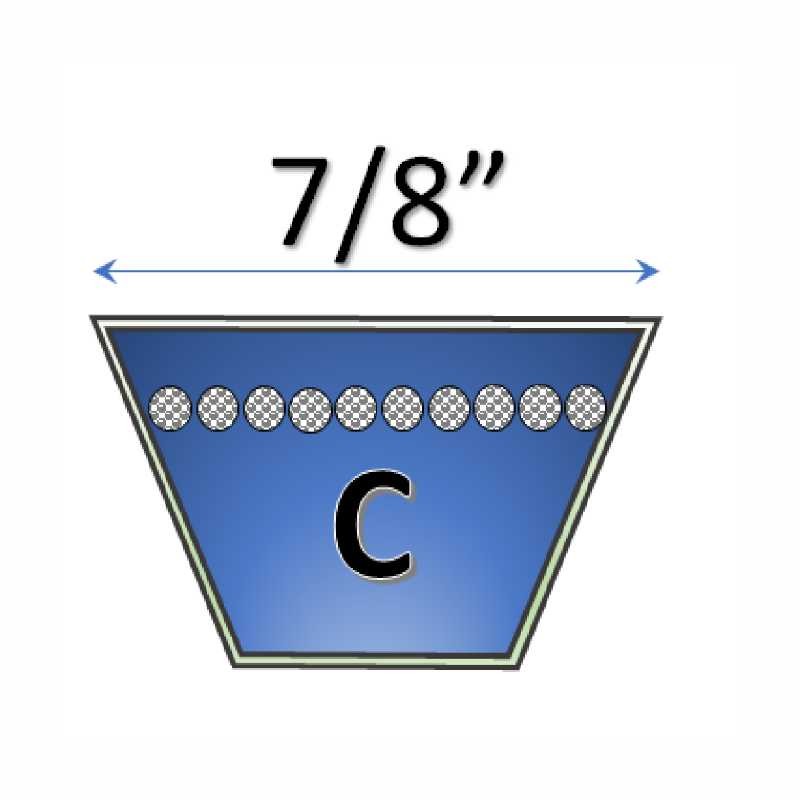

Top Width: 7/8 in
Height: 5/16 in
Length: 203 in Inside, 207 in Outside
Equivalent to: C203, C 203, C-203, A-C203, CP203, Dayco CP203, BTQ-C203, C203 D&D Power Drive

$30.39

In stock

Description: C203 Classical V-Belt
• Reference: C203
• Length: 203 in Inside Length, 207 in Outside Length
• Top Width: 21/32 in
• Height: 5/16 in
• Weight: 3.41 lb
• Material: Rubber cushion, polyester cable cord as reinforcement and rubber impregnated woven cotton-polyester fabric
• Temperature Resistance: -35C to +70C
• Recommended use: Agricultural and Industrial machinery
• Recommended pulley diameter: More than 180 mm (7-1/16″)
• Other specifications: Limited Oil resistant, Antistatic, Tolerance Stable
V-belts C203 are commonly used in industrial applications because of their relative low cost, ease of installation. The C203 has a V-shape that makes it easier to keep the belt in sheave grooves on fast moving applications. The biggest operational advantage of the C203 V-belt is the wedging action into the sheave groove. This geometry multiplies the low tensioning force to increase friction on the pulley sidewalls improving the power transmission.

Top Width	7/8 in
Belt Type	V Belt
Inside Length	203 in
Outside Length	207 in
Material	Rubber
Height	17/32 in

C203 V Belt Type C
