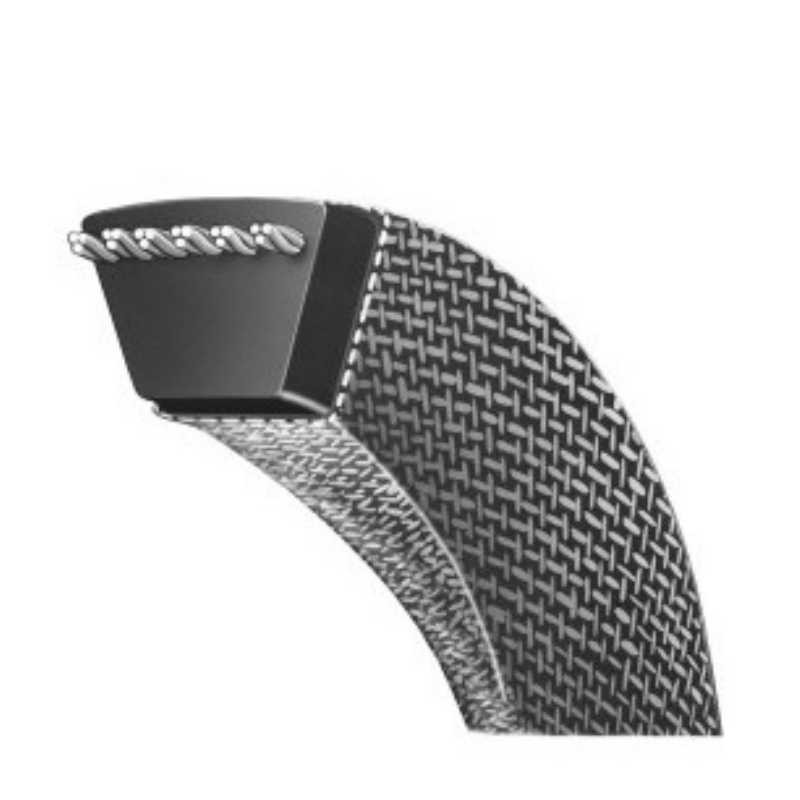

C221 V Belt Type C

Reference: C221 V Belt

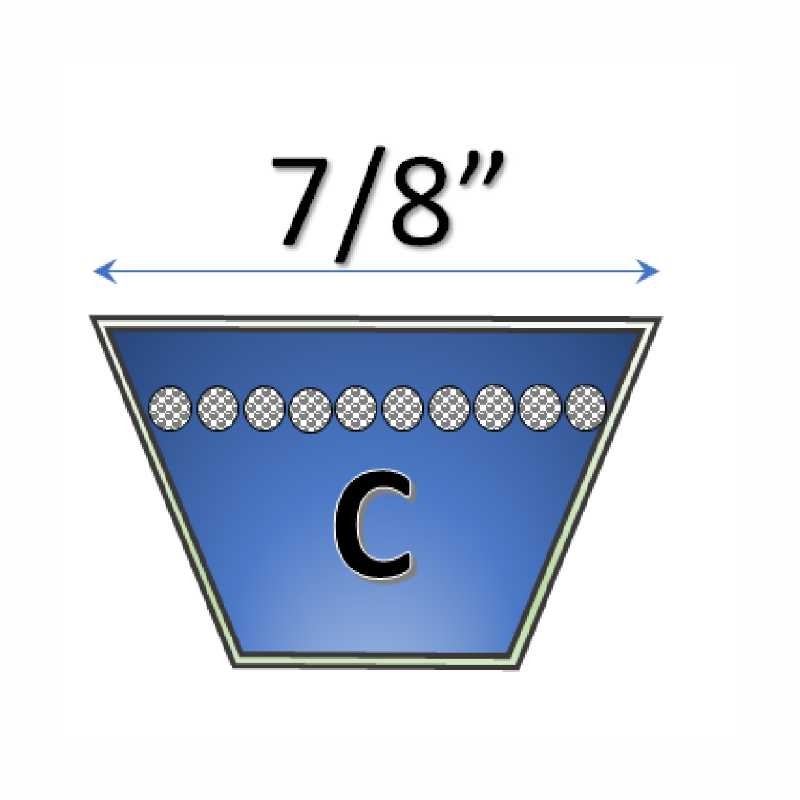

Top Width: 7/8 in
Height: 5/16 in
Length: 221 in Inside, 225 in Outside
Equivalent to: C221, C 221, C-221, A-C221, CP221, Dayco CP221, BTQ-C221, C221 D&D Power Drive

$33.08

In stock

Description: C221 Classical V-Belt
• Reference: C221
• Length: 221 in Inside Length, 225 in Outside Length
• Top Width: 21/32 in
• Height: 5/16 in
• Weight: 3.71 lb
• Material: Rubber cushion, polyester cable cord as reinforcement and rubber impregnated woven cotton-polyester fabric
• Temperature Resistance: -35C to +70C
• Recommended use: Agricultural and Industrial machinery
• Recommended pulley diameter: More than 180 mm (7-1/16″)
• Other specifications: Limited Oil resistant, Antistatic, Tolerance Stable
V-belts C221 are commonly used in industrial applications because of their relative low cost, ease of installation. The C221 has a V-shape that makes it easier to keep the belt in sheave grooves on fast moving applications. The biggest operational advantage of the C221 V-belt is the wedging action into the sheave groove. This geometry multiplies the low tensioning force to increase friction on the pulley sidewalls improving the power transmission.

Top Width	7/8 in
Belt Type	V Belt
Inside Length	221 in
Outside Length	225 in
Material	Rubber
Height	17/32 in

C221 V Belt Type C
