1000-8M-36 Timing Belt type 8M. 1000mm Pitch Length, 36mm Width.

Reference: 1000-8M-36
Description: 1000-8M-36 HTD Timing Belt
Length: 1000 mm Pitch Length
Width: 36 mm
Number of teeth: 125

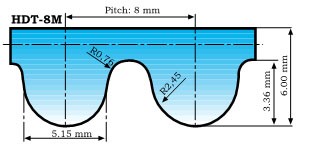

Pitch: 8 mm
Total Height: 6.00 mm
Tooth Height: 3.36 mm
Weight: 0.44 lb

$22.10

In stock

Description: 1000-8M-36 HTD Timing Belt
• Reference: 1000-8M-36
• Length: 1000 mm Pitch Length
• Width: 36 mm
• Number of teeth: 125
• Pitch: 8 mm
• Total Height: 6.00 mm
• Tooth Height: 3.36 mm
• Weight: 0.44 lb
• Material: Flexible neoprene backing, fiberglass tensile cord as reinforcement
The 1000-8M-36 timing belts offer a reliable, economical and trouble-free alternative to chain drives. 1000-8M-36 Timing belts feature an engineered HTD-type tooth profile, engineered to perform well in the common three industry standard pulley tooth profiles, HTD, Gates PowerGrip GT2 pulleys and RPP. Note: They will give slightly lower life in RPP pulleys. The 1000-8M-36 belts feature high temperature chloroprene polymer throughout. The 1000-8M-36high performance, woven, nylon based, fabric facing material has been engineered and tested for highly wear resistant performance. The backing is precision ground for smooth uniform running.

Number of Teeth	125
Top Width	36 mm (1.42 in)
Pitch	8
Belt Type	Timing Belt
Pitch Length	1000 mm (39.37 in)
Material	Rubber

1000-8M-36 Timing Belt type 8M. 1000mm Pitch Length, 36mm Width.
