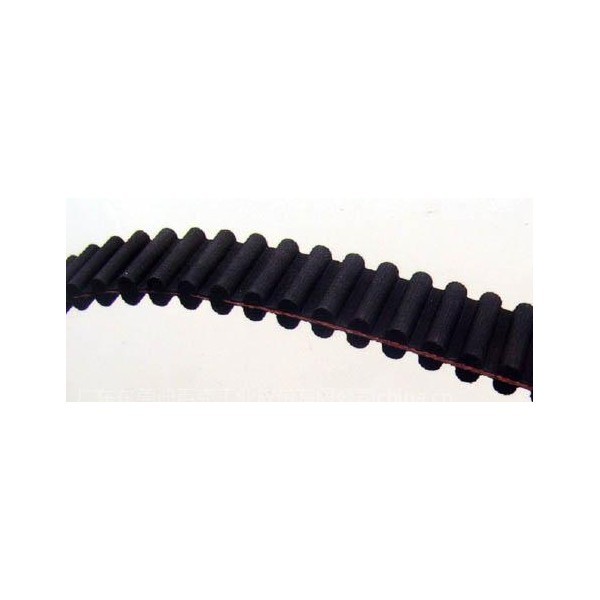

1000-D8M-100 / Double sided timing belt 8M-D8M

Reference: 1000-D8M-100
Description: 1000-D8M-100 Double sided 8M Timing Belt
Length: 1000 mm Pitch length
Width: 100 mm
Number of teeth: 125
Pitch: 8 mm
Weight: 3.00 lb

$162.10

In stock

Description: 1000-D8M-100 Double sided 8M Timing Belt
• Reference: 1000-D8M-100
• Length: 1000 mm Pitch length
• Width: 100 mm
• Number of teeth: 125
• Pitch: 8 mm
• Weight: 3.00 lb
• Material: Flexible neoprene backing, fiberglass tensile cord as reinforcement.
• Other references: D1000-8M-100
• The 1000-D8M-100 is a wrapped hex belts constructed of highly engineered, high performance components. The components are manufactured using the latest in belt technology available on a global basis. The 1000-D8M-100 outer fabric wrap is treated with highly oil and heat resistant, engineered synthetic rubber compound, specifically compounded for excellent wear resistance, proven through thousands of hours of testing.1000-D8M-100 The helically wound tensile cords are specially engineered, twisted, heat and chemically set, polyester material. The 1000-D8M-100 body rubber compound is a highly engineered synthetic rubber compound, specially compounded for cool running, flexibility, crack resistance, and excellent bonding to the outer fabric and tensile cords. The 1000-D8M-100 belts exceed USA RMA published ratings levels.

Number of Teeth	125
Top Width	100 mm (3.94 in)
Pitch	8
Belt Type	Double Side Timing Belt
Pitch Length	1000 mm (39.37 in)
Material	Rubber

1000-D8M-100 / Double sided timing belt 8M-D8M
